Hikvision DS-KD8003 gatestation module 2MP 3m IR 4 input 2 relay output 12VDC/POE

★★★★★ "The 2MP camera is crystal clear at night - our residents can see exactly who's at the gate before buzzing them in." - Estate Manager L.D., Sandton

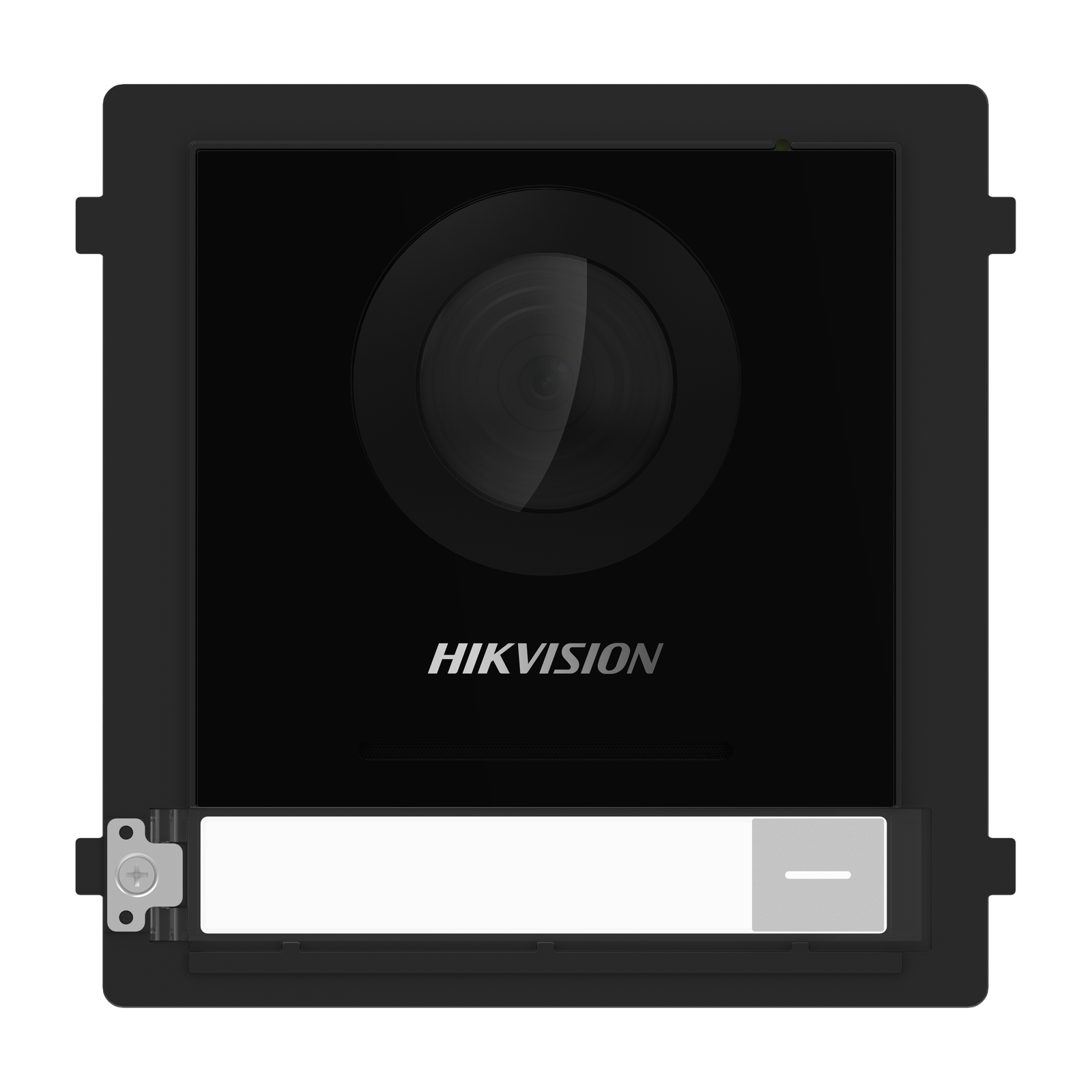

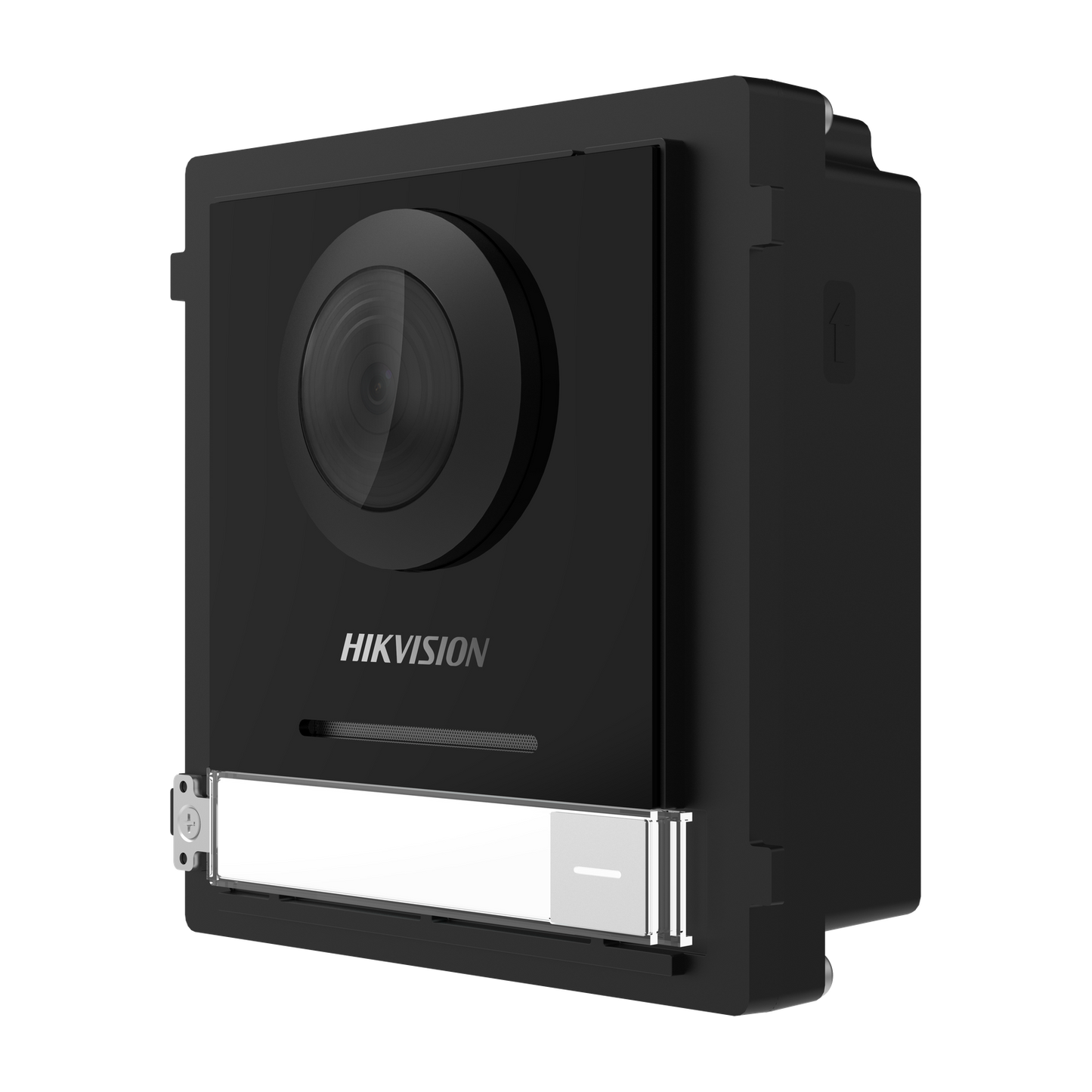

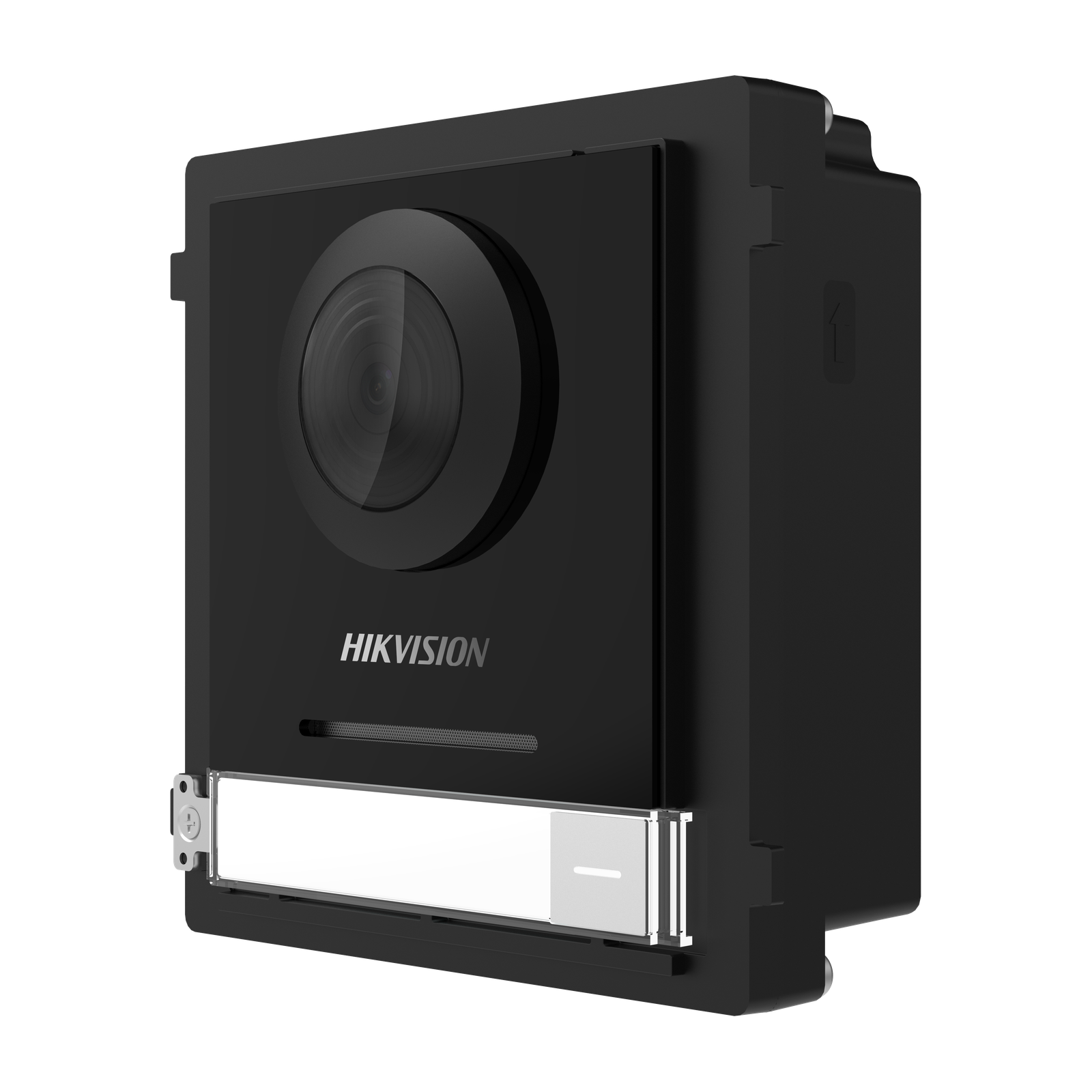

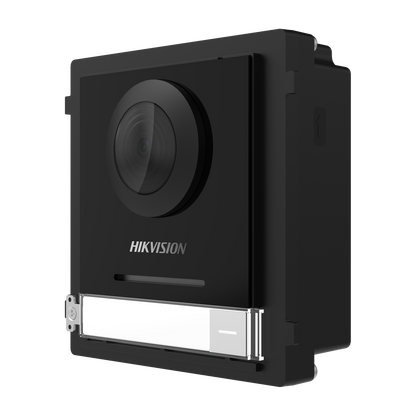

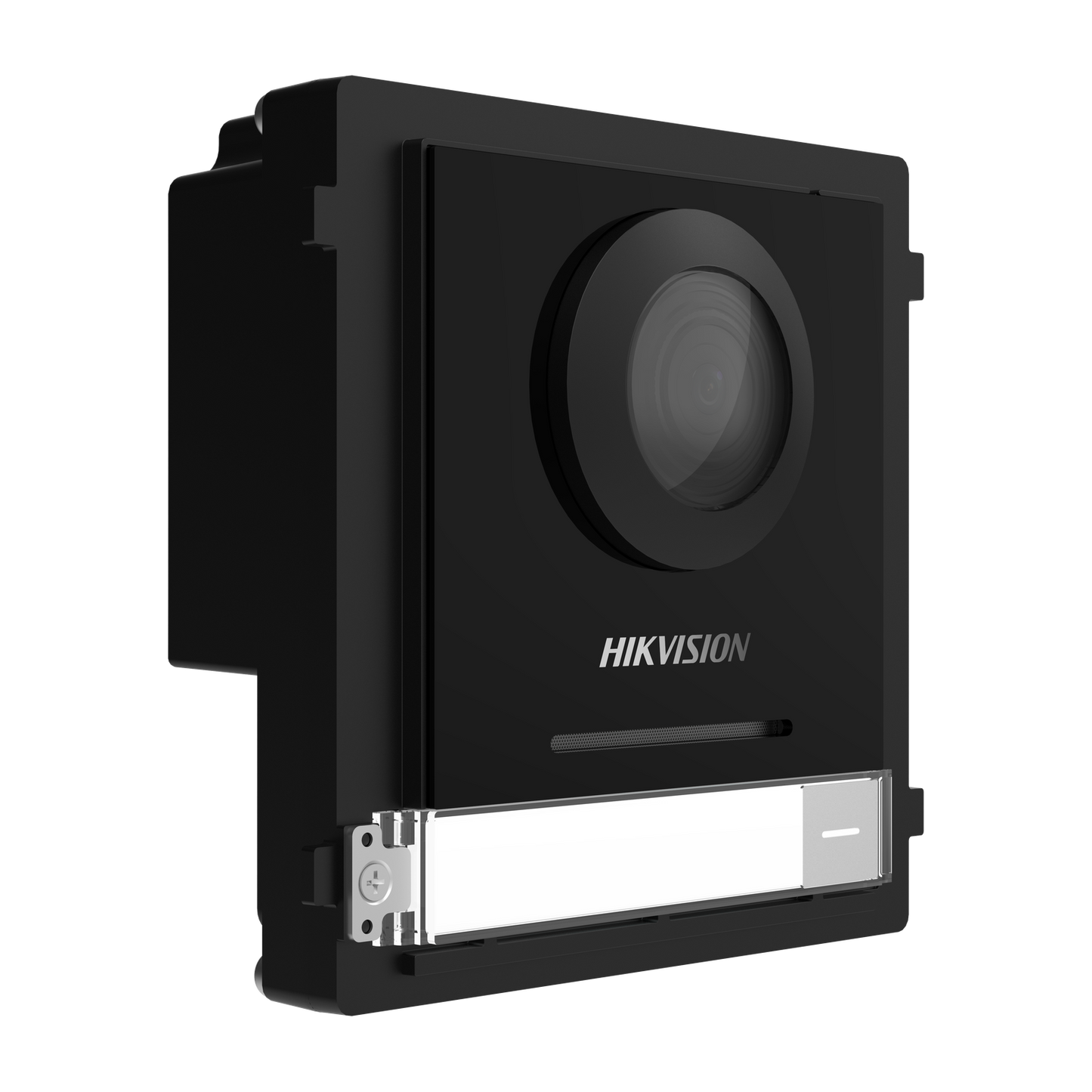

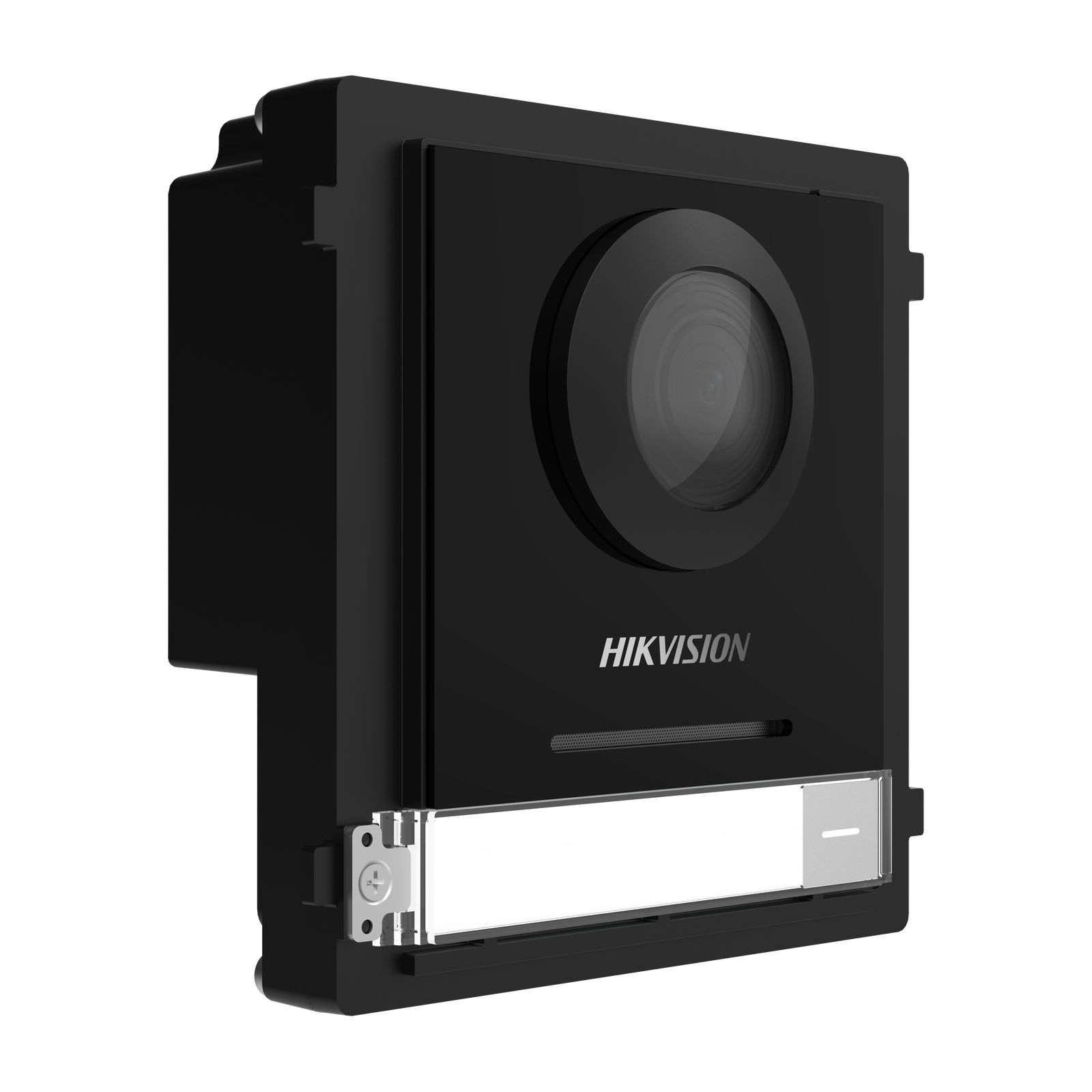

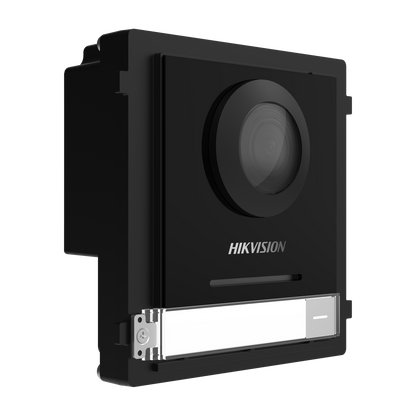

Hikvision DS-KD8003-IME1 - 2MP Video Gatestation Module with IR Night Vision

The DS-KD8003-IME1 is the core camera and control module for the Hikvision DS-KD8003 modular video intercom system. It provides 2MP HD video, 3m IR night vision, 4 alarm inputs, 2 relay outputs, and supports both 12VDC and POE power - forming the heart of a complete modular entrance station when combined with call button and card reader modules.

Why This Module Stands Out

• 2MP HD video with IR night vision - Clear, sharp video day and night - residents can see and verify visitors at the gate before granting access
• 4 inputs, 2 relay outputs - Connects to gate motors, magnetic locks, electric strikes, and alarm inputs - full site integration in one module
• 12VDC and POE powered - Flexible power options - connect via a PoE switch or a standard 12VDC power supply

Key Features

• 2MP HD camera with 3m IR night vision
• 4 alarm inputs / 2 relay outputs
• 12VDC and POE power support
• IP-based, integrates with Hikvision iVMS-4200 and HikConnect
• Core module for DS-KD8003 modular intercom system

Why You'll Love It

The DS-KD8003-IME1 is the foundation of every DS-KD8003 installation. Add call button modules, card reader modules, and keypad modules to build the exact entrance station your site requires. The 2 relay outputs connect directly to gate motors and maglocks - no separate controller box needed for basic access control. With POE support, a single cable handles both power and data to the entrance pillar.

Guarantee

3-year Hikvision manufacturer's warranty on all products. Full peace of mind backed by industry-leading support.

Delivery

Nationwide courier dispatch within 1-2 business days. Tracking sent on shipment. Learn more about shipping

Returns & Warranty

Sealed, unused items returnable within 7 days. Installed products covered under 3-year Hikvision manufacturer warranty. Email support or see our returns policy.

FAQ

Does this module work on its own, or do I need additional modules? This module provides the camera, video, and relay outputs. For call buttons, you also need a DS-KD-KK call button module. The combination forms a complete entrance station.

Can the relay outputs control a sliding gate motor? Yes - the relay outputs connect to the gate motor's trigger input. Most South African sliding gate motors (CENTURION, ET, Gemini) accept a dry contact trigger compatible with this relay.

How many indoor stations can this gatestation call? The DS-KD8003 system supports multiple indoor stations. Contact us to plan the system size for your specific site.
