HD Balun with 12VDC power input/output - Pair

★★★★★ "HD Baluns let us reuse existing coax infrastructure for new IP-style wiring — brilliant and cost-saving." Andre H., Cape Town

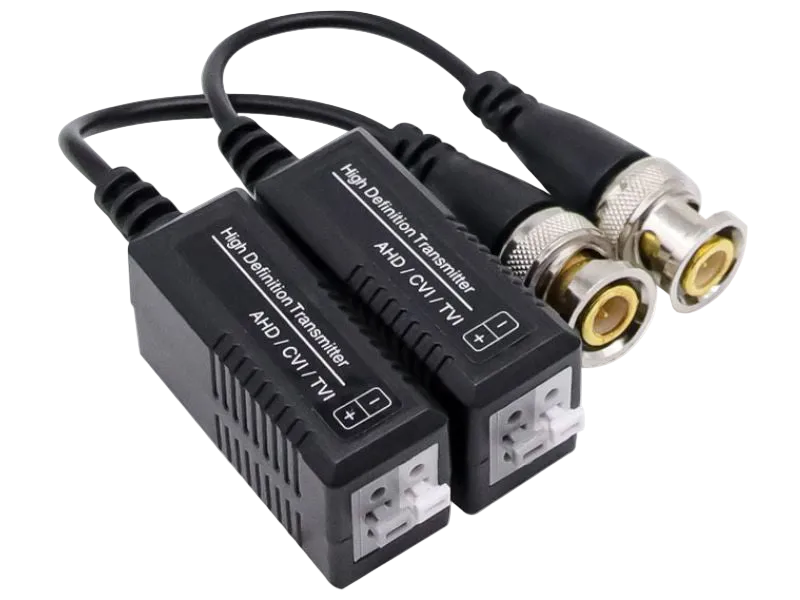

HD Balun with 12VDC Power Input/Output — Pair for Analogue Camera Wiring Over Twisted Pair

A matched pair of HD Balun adaptors that allows analogue HD CCTV camera signals to be transmitted over standard UTP (CAT5/6) twisted-pair cable instead of coaxial cable. Includes 12VDC power pass-through on each balun — transmit both video and power over the same CAT5/6 cable run.

Why This Balun Set Stands Out

• Run Analogue Cameras Over CAT5/6 Cable: Replace costly coaxial cable runs with inexpensive UTP network cable — ideal when CAT5/6 infrastructure is already installed in the building
• 12VDC Power Pass-Through: Each balun in the pair includes a 12VDC power port — allowing power to be transmitted alongside video over the same twisted-pair cable, eliminating a separate power run
• Matched Pair for Complete System: Both the camera-end and DVR-end baluns are included — everything you need for one camera position per set

Key Features

• HD Balun pair — one for camera end, one for DVR end
• Transmits HD analogue video (HD-TVI/CVI/AHD) over CAT5/6 UTP cable
• 12VDC power input/output ports on each balun — power pass-through via the cable
• Supports HD video up to 1080p and above depending on cable quality
• Passive design — no external power required for the balun itself (video only)

Why You'll Love It

HD Baluns are the professional solution for repurposing existing CAT5/6 cable runs for analogue camera signals, or for reducing material costs when CAT5/6 is preferred over coaxial. The power pass-through feature means one twisted-pair cable handles both video and power — exactly the same convenience as RG59 + power cable, but using network cable infrastructure.

Guarantee

This product carries a manufacturer's warranty. Contact support@apextradedynamics.co.za for warranty claims.

Delivery

Nationwide delivery via courier. Orders dispatch within 1–2 business days and arrive within 3–5 business days. Tracking is sent as soon as your order ships. View Shipping Rates →

Returns & Warranty

Sealed, unused items may be returned within 7 days of delivery. Contact support@apextradedynamics.co.za to initiate a claim. Full Returns Policy →

FAQ

What is the maximum cable run distance for HD Baluns?
HD Baluns typically support up to 300–400 metres on quality solid-core CAT5e/6 cable for analogue HD video. Actual performance depends on cable quality and video standard used.

Do these baluns work with IP cameras?
No — baluns are for analogue CCTV cameras (HD-TVI, HD-CVI, AHD, CVBS). IP cameras transmit digital data over network cable and connect directly via RJ45.

Is one pair sufficient for one camera?
Yes — one pair (two baluns) handles one camera position: one balun at the camera, one at the DVR or video distributor end.
